1. Biological S-line

Meer informatie

2. Designed for less bone stress

Meer informatie

3. Higher initial stability in any
bone condition

Meer informatie

4. R2Gate: Digital planning becomes reality. Octa position selection enables
more accurate positioning.

5. Feel the X-FIT™ moment!

Meer informatie

6. Pure Titanium Body

Meer informatie

7. X-peed: Nano bone matrix layer of Ca2+- incorporated S-L-A surface. Excellent, rapid & long-lasting osseointegration

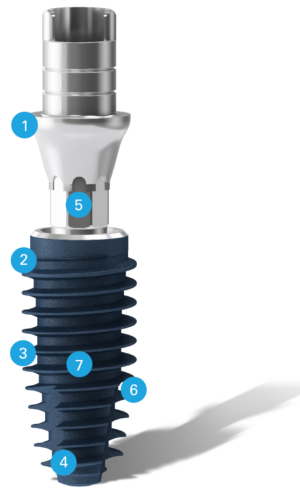

overview image_Tekengebied_new

Biological S-line

Upper thread-less section of fixture & double-offset structure of biologic S-line cuff design of abutment create better peri-implant biotype & provide emergence profile for more esthetic & functional prosthetic results.

biological s line with text

Designed for less bone stress

BLUEDIAMOND® implants do not rely on cortical bone for initial stability. By reducing the stress applied to the cortical bone, this prevents bone resorption that occurs after fixture placement. The coronal design of BLUEDIAMOND implants preserves more cortical bone around the fixture, resulting in a beautiful gingival line, along with fast and strong osseointegration.

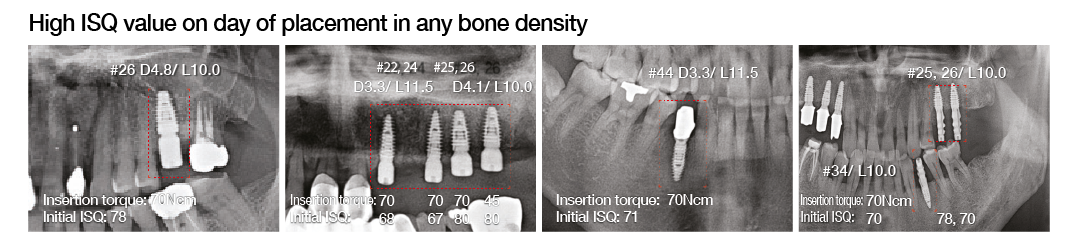

Higher initial stability in any bone condition

Deep thread & KnifeThread® design ensure high stability even in soft bone.

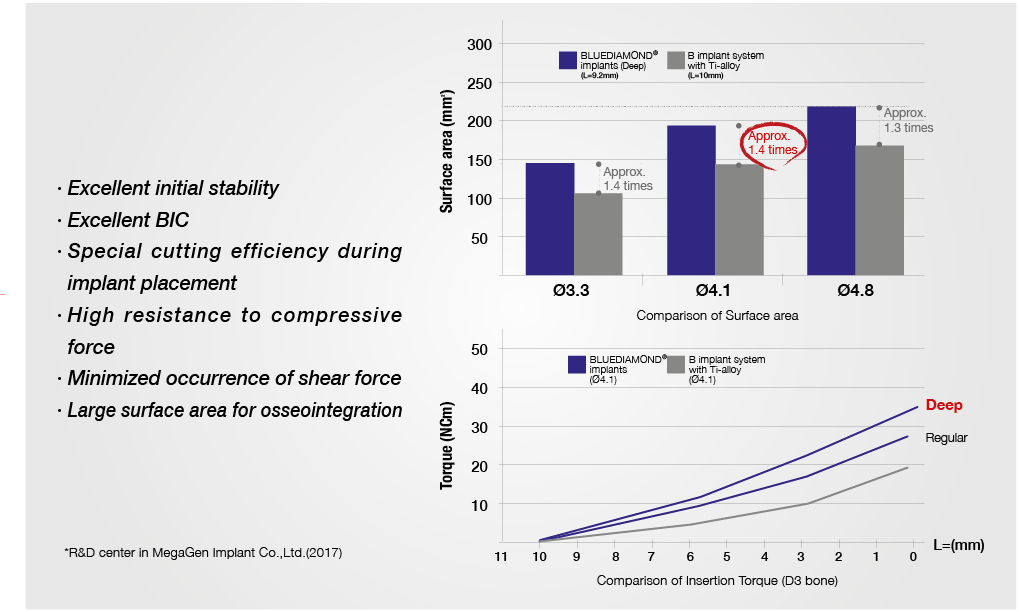

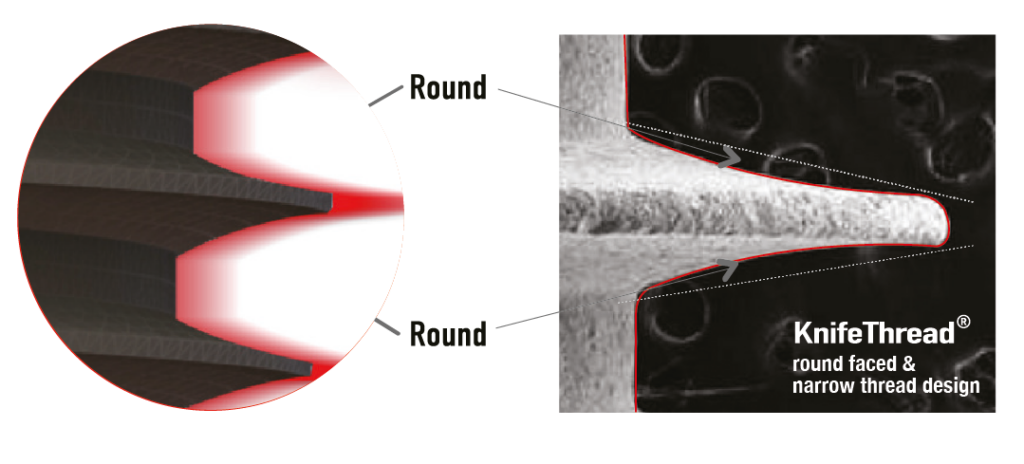

KnifeThread® guarantees sustained implant stability

The unique KnifeThread® and super self-tapping design features provide superior initial stability in any compromised bone situation, including bone condensing, gentle ridge expansion, maximized compressive force resistance, and minimized shear force production.

1. Stable dispersion of stress with buttress thread shape
2. Easier insertion with sharp thread shape
3. Round face has larger surface area than straight face

Digital planning becomes reality

Octa position selection enables more accurate positioning.

Feel the X-FIT™ moment!

Precise Positioning & Prosthetic Connection

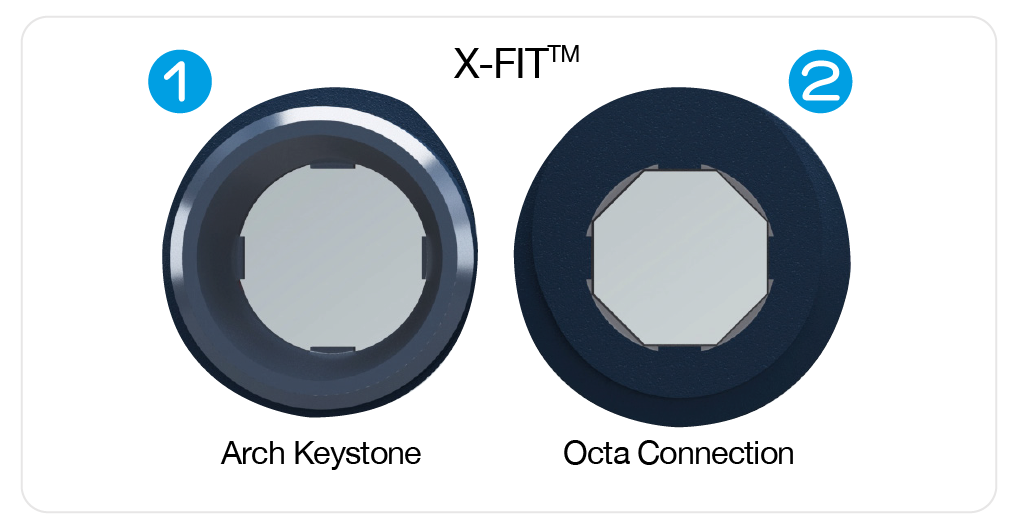

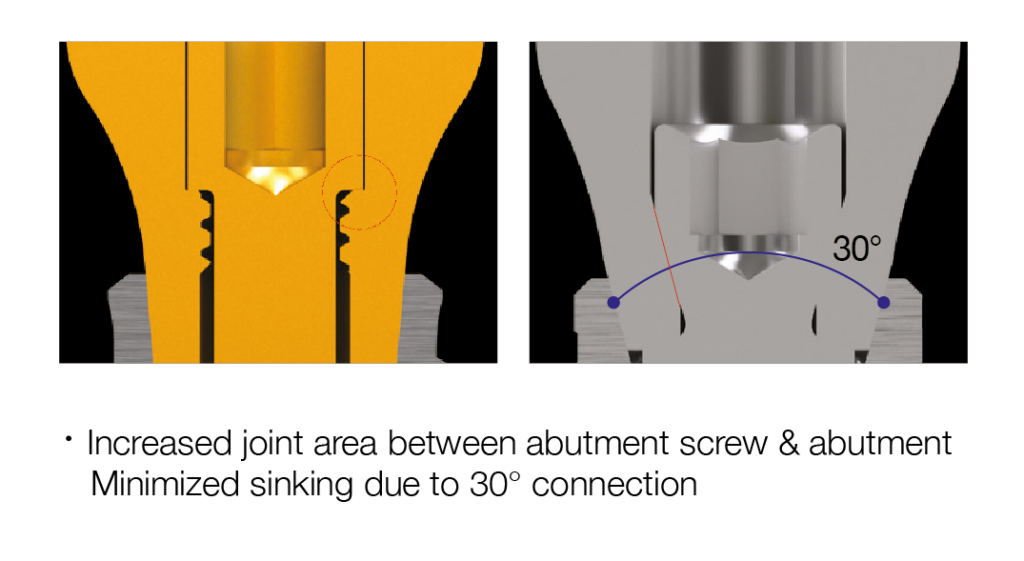

BLUEDIAMOND® implants have a unique X-FITTM connection with a 30° internal conical connection & double-fastened internal structure of an arch keystone & octa combination.

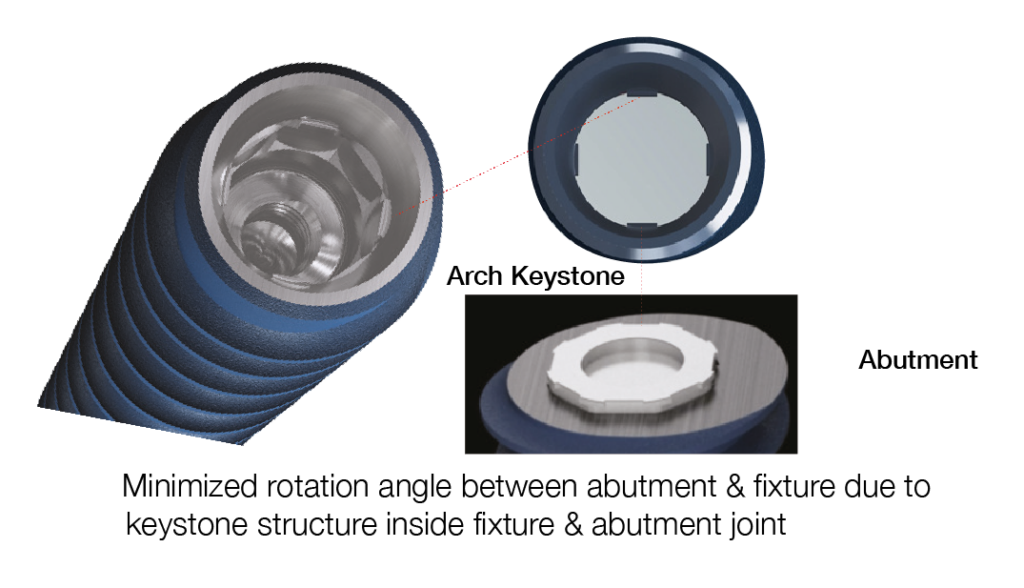

Devised from architectural principles, the arch-type keystone improves long-term mechanical stability with high resistance to external compressive forces, such as mastication, and an excellent stress dispersion effect.

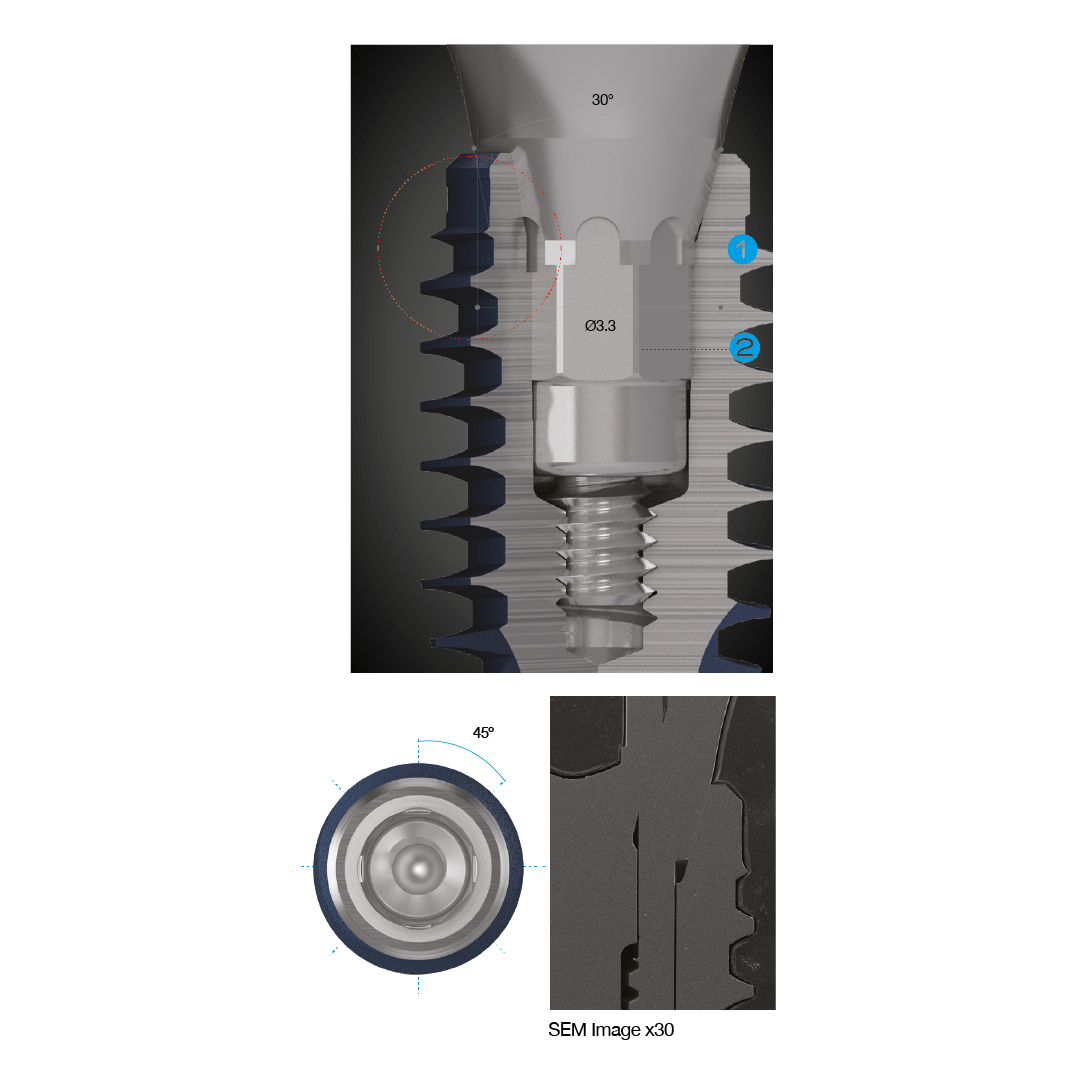

Click! Fits in 8 positions

When correctly mounted, the abutment & fixture snap together to create a perfect connection. Plus, the position of the abutment can be precisely rotated in 45° increments (8 positions), allowing accurate positioning, especially when using an angled abutment.

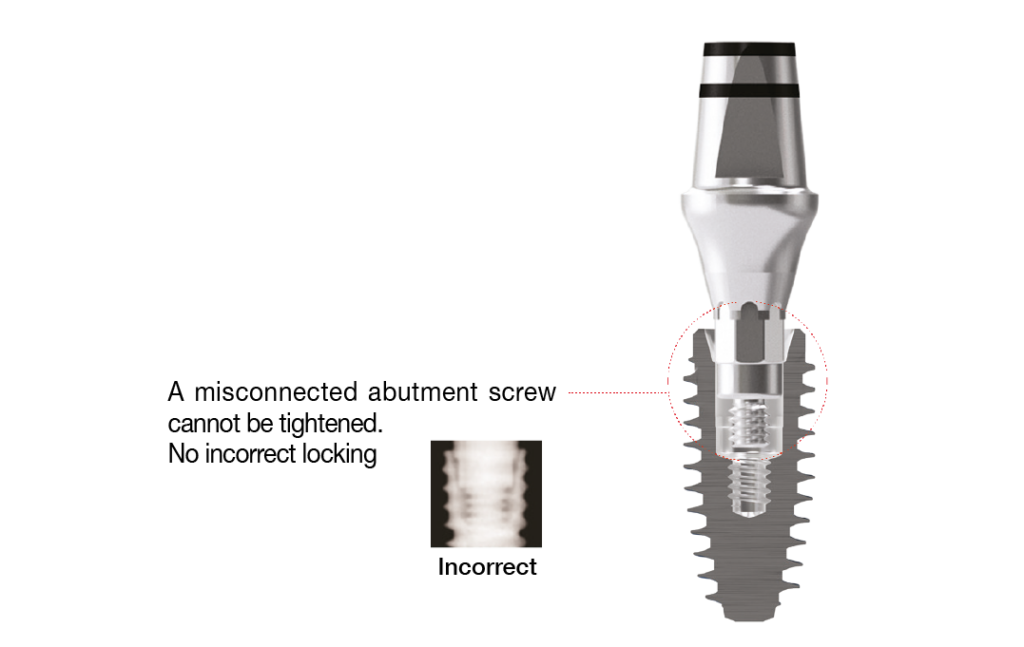

No more misconnection

BLUEDIAMOND implants is not possible to tighten the abutment screw if the prosthesis is not correctly connected to the fixture.

Minimize Screw Loosening

Improves convenience of implant maintenance

Pure titanium body

Long-term biological stability with over 20 years of clinical evidence. BLUEDIAMOND implants are made of pure medical Grade 4 titanium (coldworked) that has been clinically proven for more than 20 years to provide biocompatibility and ensure long-term survival when linked to an implant design with improved strength. Notably, combining a higher

compressive strength and fatigue strength safeguards the long-term mechanical stability of the implant.

Stronger than any other implant

Same long-term biological stability

Targeting zero fractures due to higher strength

BLUEDIAMOND implants are made of pure medical Grade 4 titanium (coldworked) that has been clinically proven for more than 20 years to provide biocompatibility and ensure long-term survival when linked to an implant design with improved strength. Notably, combining a higher compressive strength and fatigue strength safeguards the long-term mechanical stability of the implant.

X-PEED

Nano bone matrix layer of Ca2+- incorporated S-L-A surface.

Excellent, rapid & long-lasting osseointegration.
