SIMPLIFIED MOLAR SOLUTION
BD Cuff®
BD Cuff® is designed to protect the implant-tissue interface, minimizing crestal bone loss wile supporting healthy soft tissue integration. The result is greater implant stability, long-term aesthetics, and confidence for both clinician and patient.
KEY FEATURES
BD Cuff®
Design Concept
Magic Cuff
Clinical Indications
Drilling Protocol
Detailed Features
Design Concept

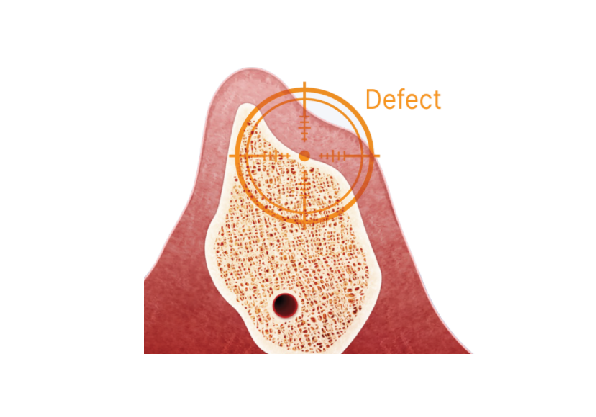

Special Solution for Molar Defects
Enables implant placement in thin alveolar bone, low bone height, or defective alveolar bone using a simple epicrestal placement technique.

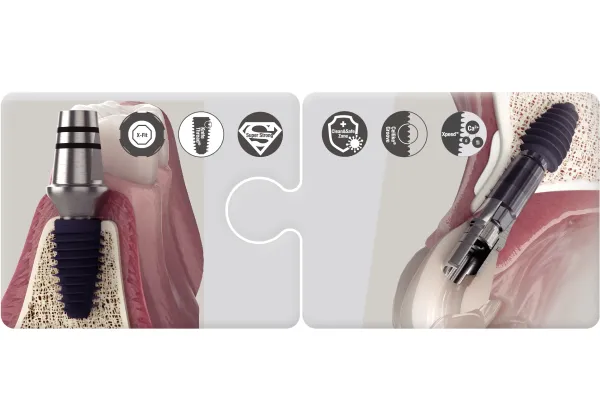

Collaboration of BD and ARi Concepts
Features proven BD X-FIT® connection, compatible with existing BD components, and innovative ARi design.
Detailed Features
Magic Cuff
Innovative design for reduced complications

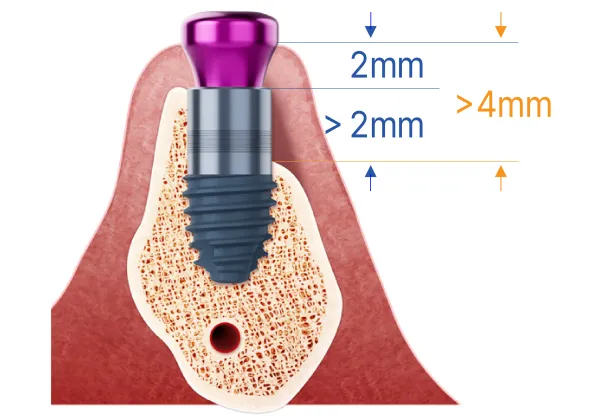

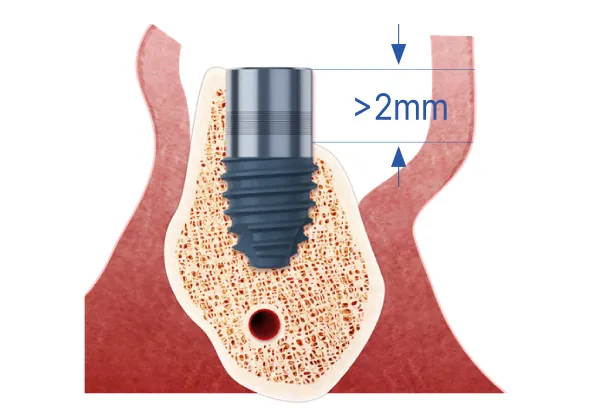

Soft tissue cuff (>2mm) prevents thread contamination and peri-implantitis, while being easy to manage and remove in case of complications.

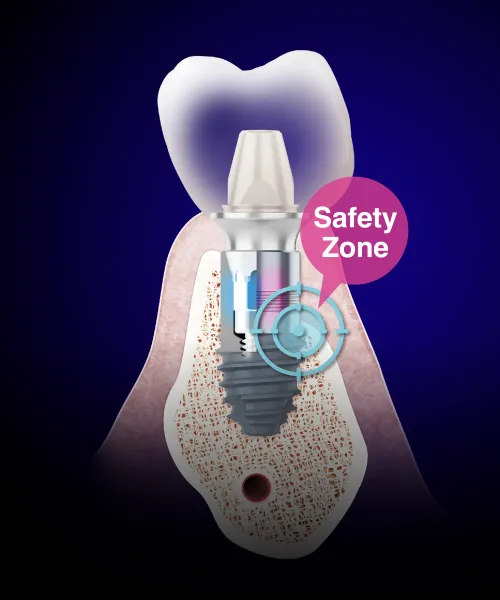

Designed to protect implants from complications
With adequate soft tissue height (>4mm), BD Cuff® implants prevent crestal bone loss and contamination, especially in areas with thin gingiva (<2mm).
Detailed Features
Clinical Indications
Suitable for a wide range of clinical scenarios
Effective for thin ridges, bone defects, and dehiscence. Supports epicrestal, subcrestal placement, or soft tissue augmentation.

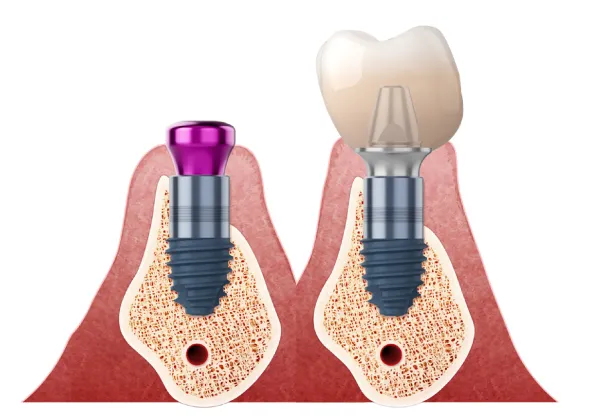

Streamlined one-stage surgery
Final prosthesis placement possible within 1-1,5 months. Addresses bone issues early without the need for extensive grafting.
Detailed Features
Implant Selection

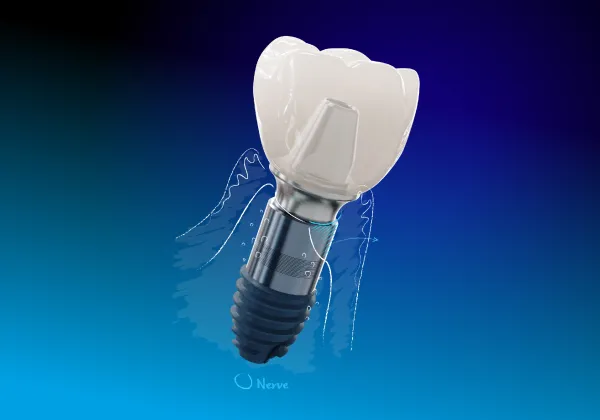

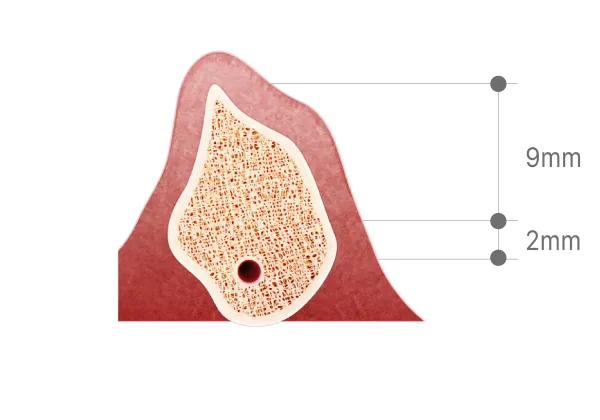

Assess the available bone height
Measure the distance from the crestal bone to the inferior alveolar nerve to determine the total implant length that can be placed.

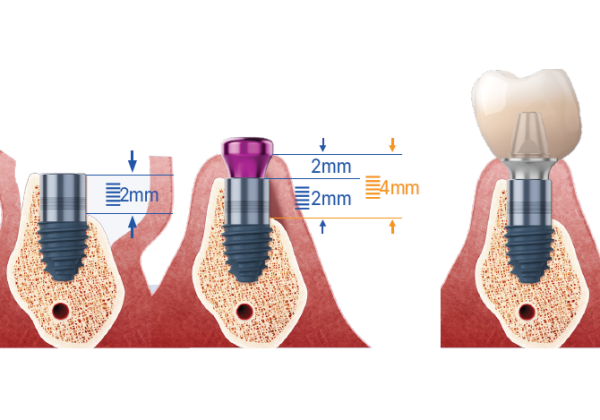

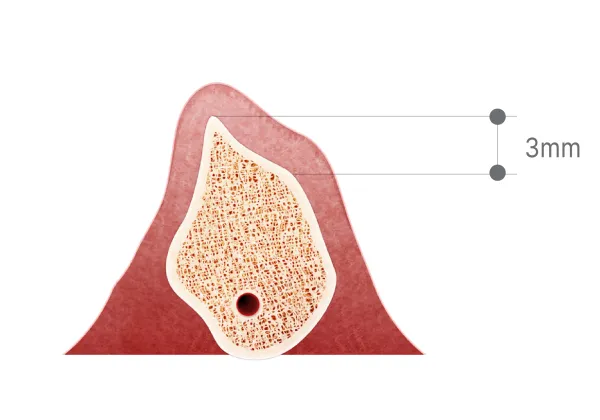

Determine the cuff height
Determined based on defective one height. (If the bone height is 3mm, select a 4mm cuff height).

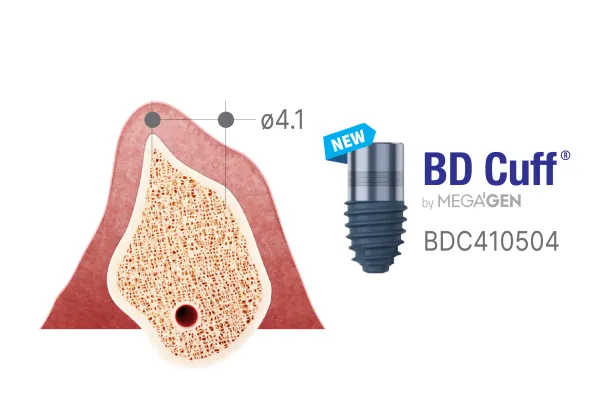

Determine Implant Diameter
The diameter should match the site-specific bone and gingival conditions for optimal stability.
Detailed Features
Drilling & Placement

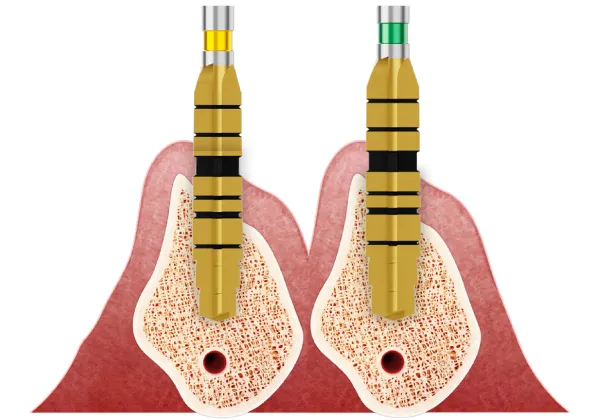

Follow the Drilling Process
Start with a lance drill, followed by drills in the sequence: 2.5mm, 2.9m, 3.3mm, 3.6mm and 3.9mm. Adjust drilling based on bone density (D1/D2) & Implant Diameter.
Ensure Proper Insertion Torque
Maintain an insertion torque of 80Ncm or les when using the 45Ncm ratchet connector for safe and effective implant placement.
BD Cuff®
Introducing BD Cuff® Implant
Your Resource for Transforming Molar Solutions
Schedule a demo or download BD Cuff® literature, via MyMegaGen, to learn more.
