Insight met CEREC

AnyRidge® Implant System Scan Post (C-Type)
by Neal Patel DDS



Summary: The following information will guide you through the scan, design and production process utilizing the MegaGen AnyRidge Scan Post (C-type) with the CEREC system. This step-by-step instructional piece details the procedures and processes involved in creating a screw-retained, implant-supported restoration with the AnyRidge ZrGen Abutment (C-type).

AnyRidge Scan Posts (C-type) are designed for intra oral scanning utilizing the CEREC system from Sirona, to precisely transmit prosthetic information relating to the exact clinical position of the implant. Featured here is a step-by-step demonstration utilizing the AnyRidge Scan Post (C-type) to restore Tooth #30 after implant placement and osseointegration.

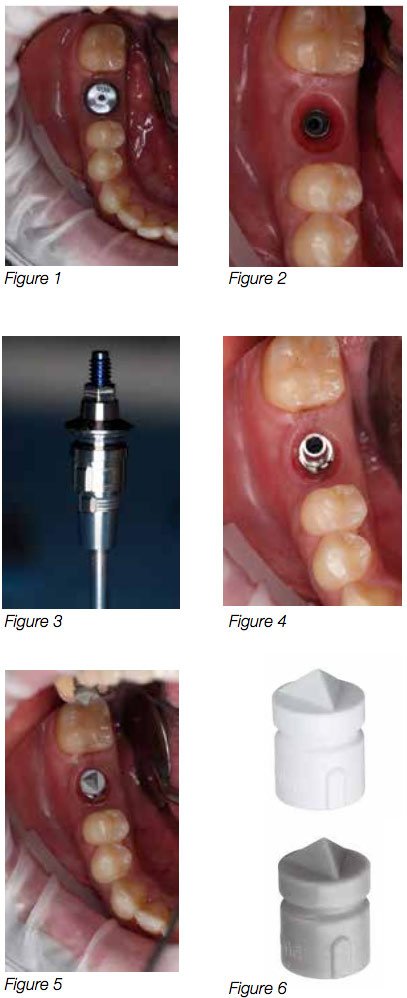

The patient presented with the healing abutment in place, and is ready to begin the restorative process eight weeks post implant placement (fig 1). Removal of the healing abutment reveals healthy keratinized tissue and exposes the implant in preparation for AnyRidge Scan Post C-type to be placed to scan (fig 2).

Scanning Protocol
Place the Scan Post on the driver; note the prosthetic notch on the side wall of Scan Post (fig 3). This notch should be oriented on a proximal surface, as the milling sprue is usually 90° from the notch on the Scan Post. This will avoid having a sprue on a proximal contact area and avoids manual adjustment of proximal contact in the crown restoration. When the Scan Post is properly seated on the AnyRidge implant, there is clear visual confirmation of the notch on mesial of the implant (fig 4). Taking a patient X-Ray is recommended to adequately confirm seat of the Scan Post.

The Scan Post is the metal part that receives the Scan Body (fig 6) which is available through your Dentsply Sirona dealer. The gray Scan Body is for use with Omnicam and white Scan Body is for Bluecam. Please refer to page 9 for more information.

Administrative Screen Options
Select the following options on the Administrative Screen Figure #7:


1. Restoration Type
– a. Screw Retained Crown b. Multilayered Abutment



2. Design Mode
– a. Biogeneric Individual

3. Material
– a. IPS e.max CAD

4. Mill Device
– a. Specify your mill


5. Scanbody Type
– a. Scanpost



6. Ti Base Manufacturer
– a. SIRONA

7. Ti Base
– Please refer to chart on Page 9 for sizes

8. Define Restoration
– a. Acquisition


Fig 7: Administrative Screen and proper selection of materials and implant Scan Post (use Sirona’s XiVE® listed as “FX” in Sirona Library.)

Follow traditional CEREC protocol for manufacture and restoration.

Fig 8: Intraoral Scan with CEREC Omnicam with 4.4.2 Software release. Axial View

Fig 9: Intraoral Scan with CEREC Omnicam with 4.4.2 Software release. Buccal View

Fig 10: Intraoral Scan with CEREC Omnicam with 4.4.2 Software release. Buccal View with Xive Implant Body Identified

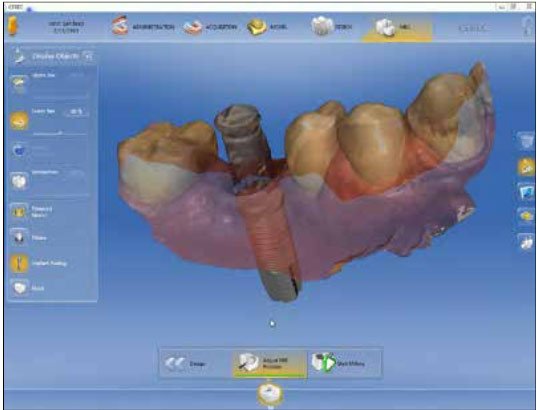

Fig 11: Transparent view: Implant location identified through software algorithm based from Scan Post

Fig 12: Visual confirmation of AnyRidge Ti Base on XiVE implant

Fig 13: Prosthetic Design for Screw-Retained e.max Crown. Use Sirona’s XiVE CAD program to design your abutment and crown per normal processes.

Fig 14: Prosthetic Design for Screw-Retained e.max Crown

Fig 15: Software showing simulated Ti base

Fig 16: Ti Base with Custom Crown

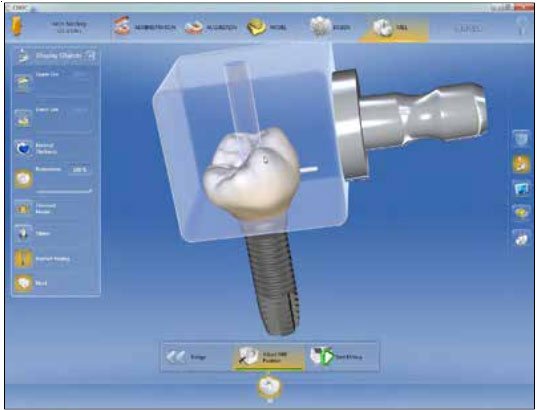

Fig 17: Ti base with Custom Crown within e.max Abutment Block

Fig 18: Ti base with Custom Crown within e.max Abutment Block

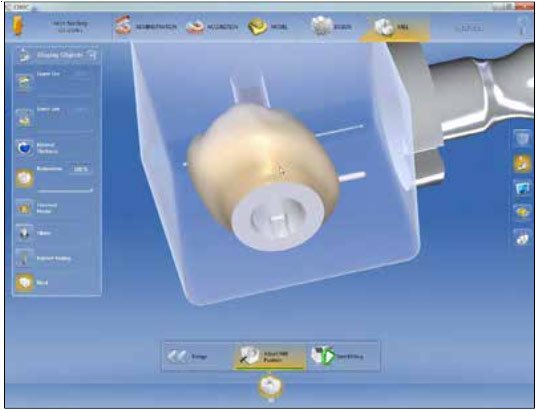

Fig 19: Notch interface relationship to crown (note: e.max block selected is large size to match the AnyRidge large Ti base.The notch and hole are pre-machined into e.max block). For AnyRidge small Ti base/Scan Post, the small e.max block must be selected.

Fig 20: Screw hole location of restoration based on pre- machined hole in e. max block

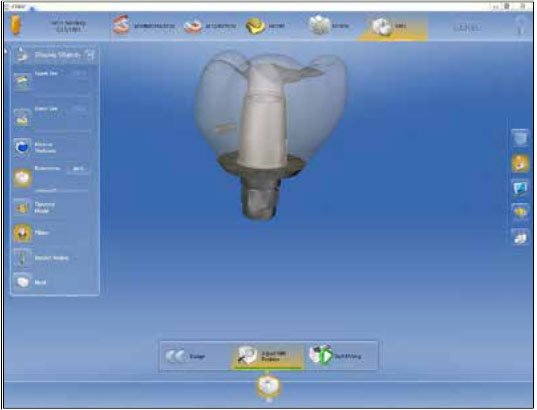

Fig 21: Transparent view showing relationship of Crown-Ti base – Implant.

Fig 22: Visual of custom designed crown and Ti base. Once milled from correct shade block, e.max must be fired based on Ivoclar firing instructions. The crown and Ti base must be treated using Ivoclar protocol and cemented using Multilink Hybrid Abutment Cement within Laboratory.

Fig 23: P.A. X-ray showing Hybrid Abutment-Crown Restoration from CEREC. Note: NOT Properly Seated!

Fig 24: P.A. X-ray showing Hybrid Abutment-Crown Restoration from CEREC. Note: Properly Seated!

Fig 25: Same Day restoration #30 screw-retained Hybrid Abutment Crown on AnyRidge Implant

Fig 26: AnyRidge® ZrGen Abutment selection chart:



Fig 27: AnyRidge® Scan Post selection chart:
